TRD METHOD FEATURES

1. High Security of TRD Equipment

TRD equipment is less than 35% of traditional?method machine in height

.2.?Continuous, Constant Thickness and Joint-free Wall

Transverse movement of cutting post makes continuous?join-free wall with high impermeability

Constant thickness wall is suitable for inserting H-beam?with any distances.

3.?Walls of Homogeneity and Equal Strength

Vertical movement of cutting chain, mixing soil with?concrete slurry, all of these assure a high quality of homogeneity?wall.

Compared with traditional method, TRD makes thinner?walls with same impermeability.

4.?High Accuracy

All the main working institutions have measuring sensors,?which can effectively monitor the straightness and?verticality of the wall to ensure the precision of the wall.

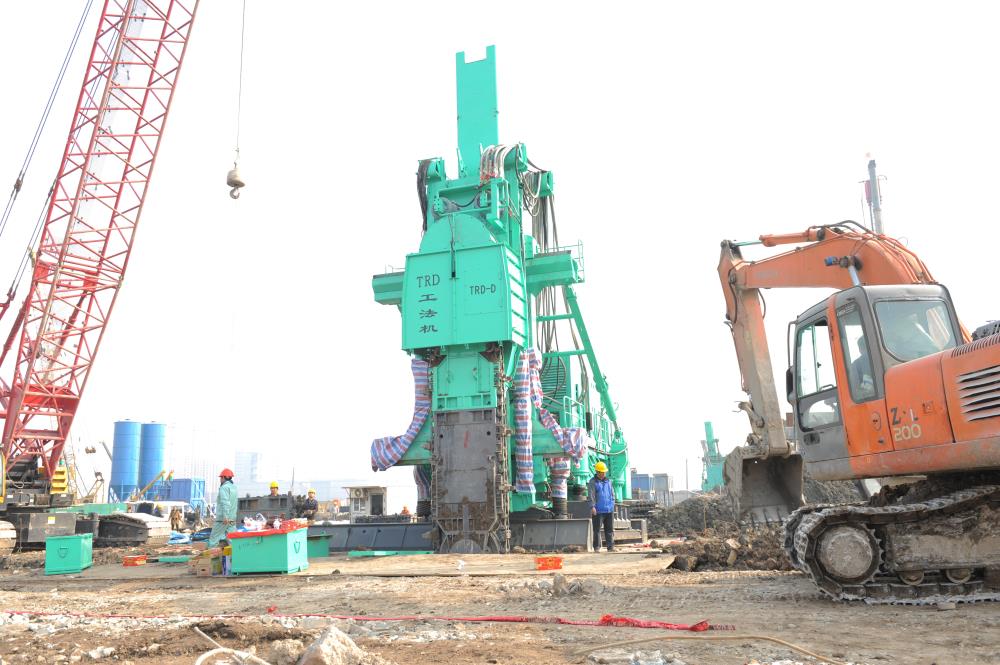

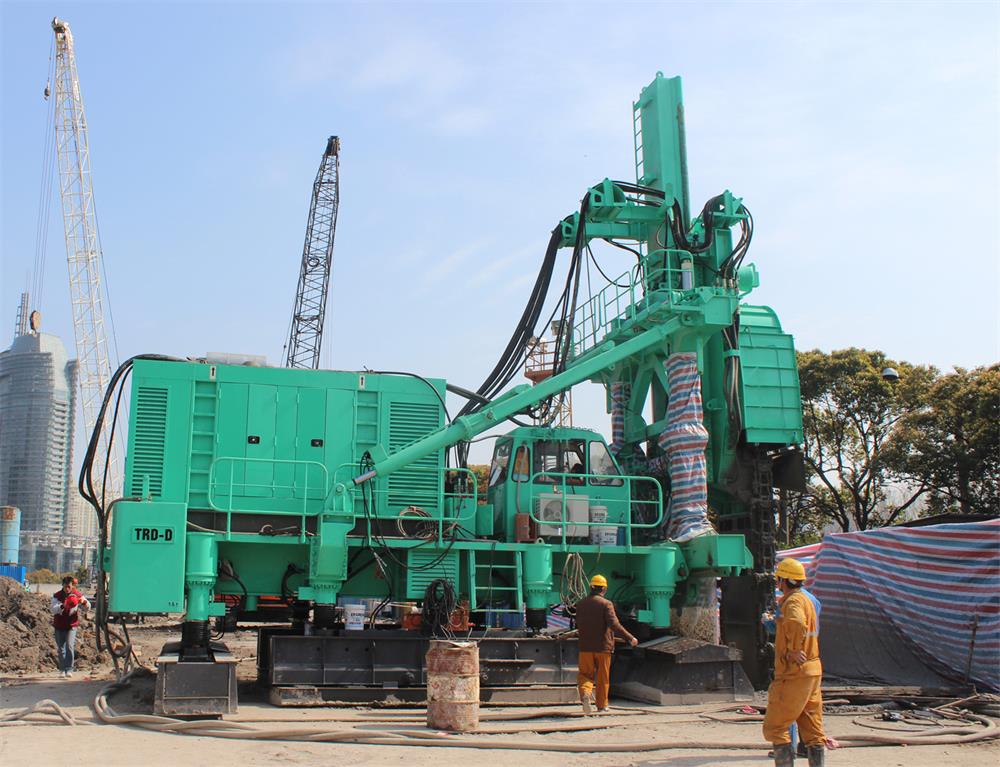

TRD-D METHOD EQUIPMENT FEATURES

1.High Power & High Efficiency

Imported high-power engine and high-power hydraulic drive?motor are adopted to provide larger cutting propulsion and?lifting force of cutting system, ensuring larger cutting torque?and reliable power supply.

2.Famous-brand Spare Parts & High Quality

Imported famous-brand hydraulic components, which assure?the equipment’s stability and security.

Imported famous-brand hydro power cutting system with low?speed and large torque, which is stable and reliable, produces?low heat and ensures long-term continuous work.

Imported famous brand electric control proportional pump,?can control the torque and rotation speed of cutting mechanism?according to the program, improve the flexibility of construction?and quality control.

3.Track Base Machine & High Stability

TRD equipment is designed in compact structure and suitable for various?ground conditions. Base machine can be transported integrally.

Rotary track base machine reduces ground pressure, makes stable and?easy travel, good displacement straightness during construction.

Compared with the crawler base machine, track system is more suitable?for deep cut in hard ground.

Transverse-moving-track with?main frame inlay transmits?the reacting force to the track,

to avoid the damage of jack?cylinders. Four pairs of jack cylinders,?eight in total. Each track?can act with solo jack or dual?jacks, which assures balancing?operation of the equipment.

4.?Smart Control & Facile Operation

Inclinometers for each main structure, provides?easy control and feedback of the equipment.

Smart control of outrigger cylinder, provides automatic?deviation correction when the cutting post?works. It assures the quality of wall making and?easy operation.

Smart control of the torque avoids overload and?damage of the equipment.

5.?Dual Power Systems & Advanced Technology

Two power systems for TRD equipment: Main power (Diesel) and Auxiliary?Power (Electric), which works independently. But the Auxiliary power?can be substitute for the Main power when the fuel supply is cut off or?the machine is halted. In this case, the cutting post can be safely parked?in the trench without being cemented in.

6.?Localization service& Better guarantee

Special designed cutting chain for TRD method, with lube-bath technology,?high quality materials and favorable price, stock available anytime.

Sprocket (Driving wheel) is made with alloy materials, fine machining.?Sufficient supplies and timely delivery.

Follower (Driven wheel inserted in underground) is designed with special?sealing technology. Imported famous brand bearings and cement-proof?seals. Sufficient supplies and good maintenance service.

Exclusive supplier of the cutter. Imported, sufficient supplies and easy?maintenance.
