中文Transcendence, agility, solidity and stability?
Leapfrog Quiet, Pure Electric Drive?
The much-anticipated SEMW brand new first electro-hydraulic hybrid?

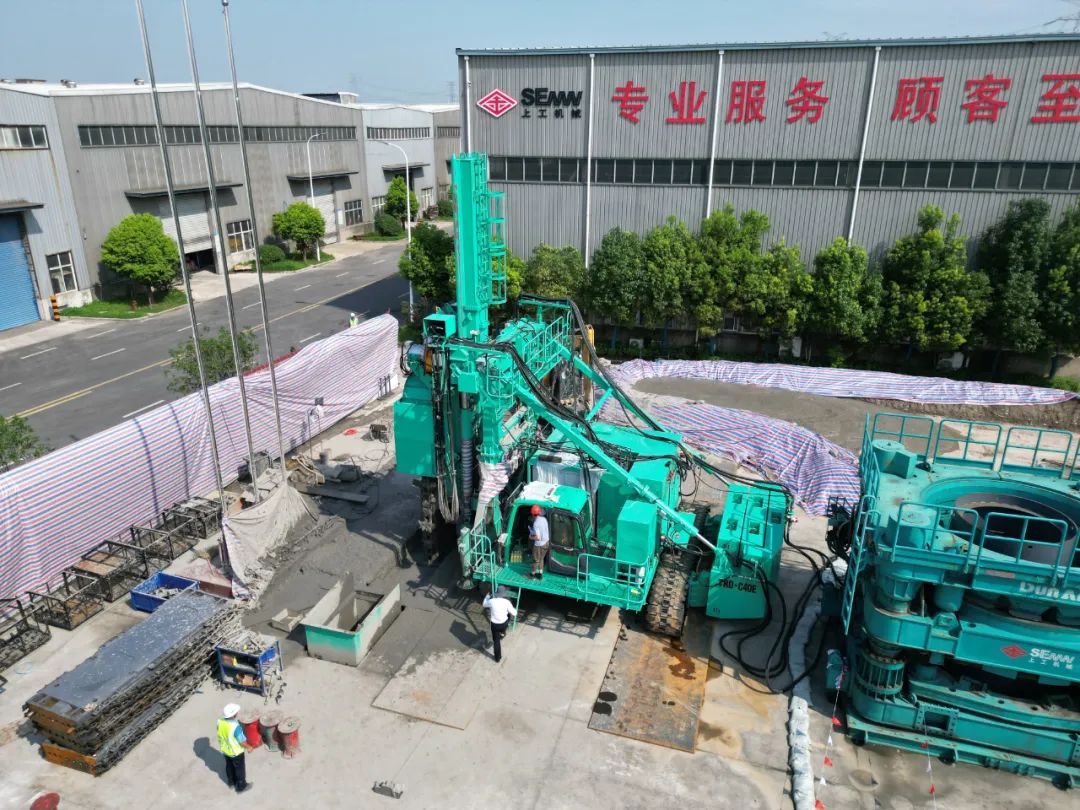

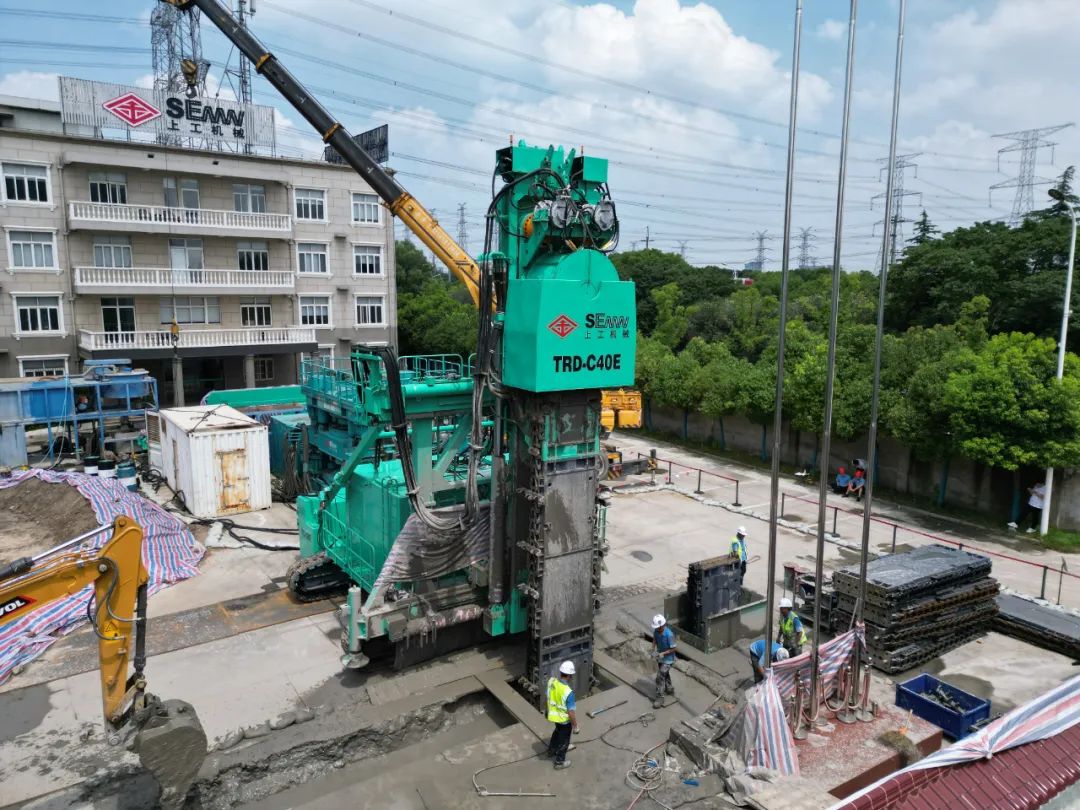

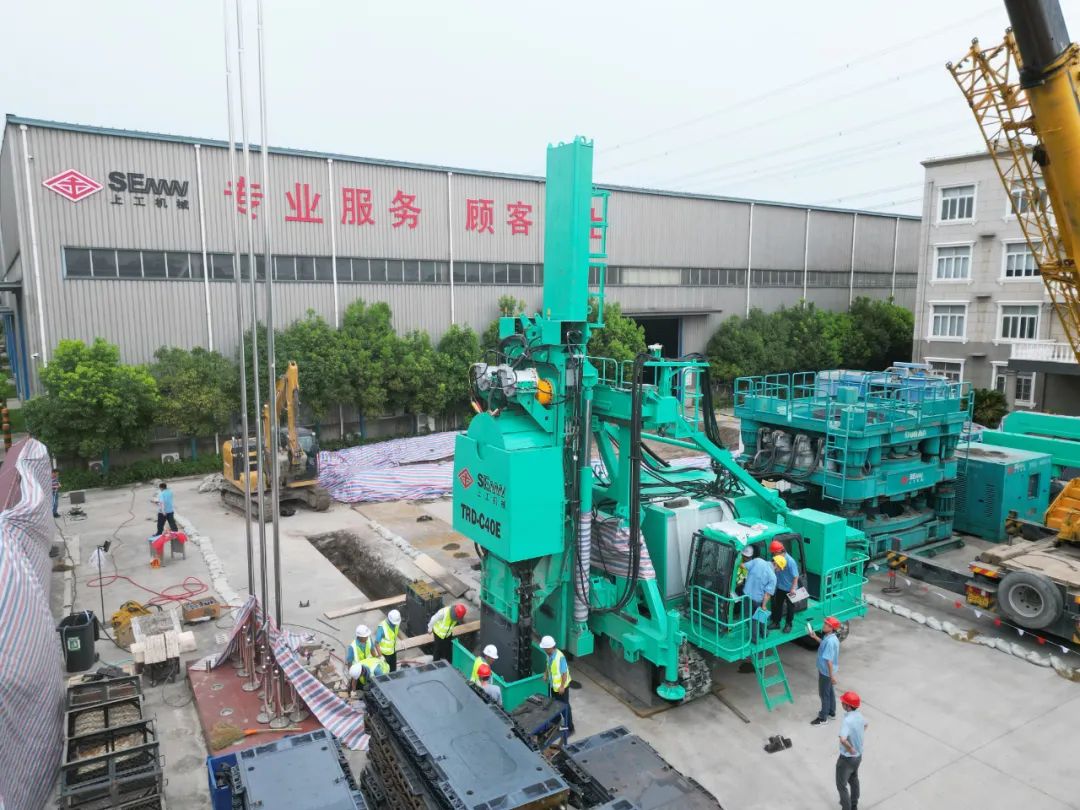

The TRD-C40E construction machine has been successfully rolled off the assembly line recently!?

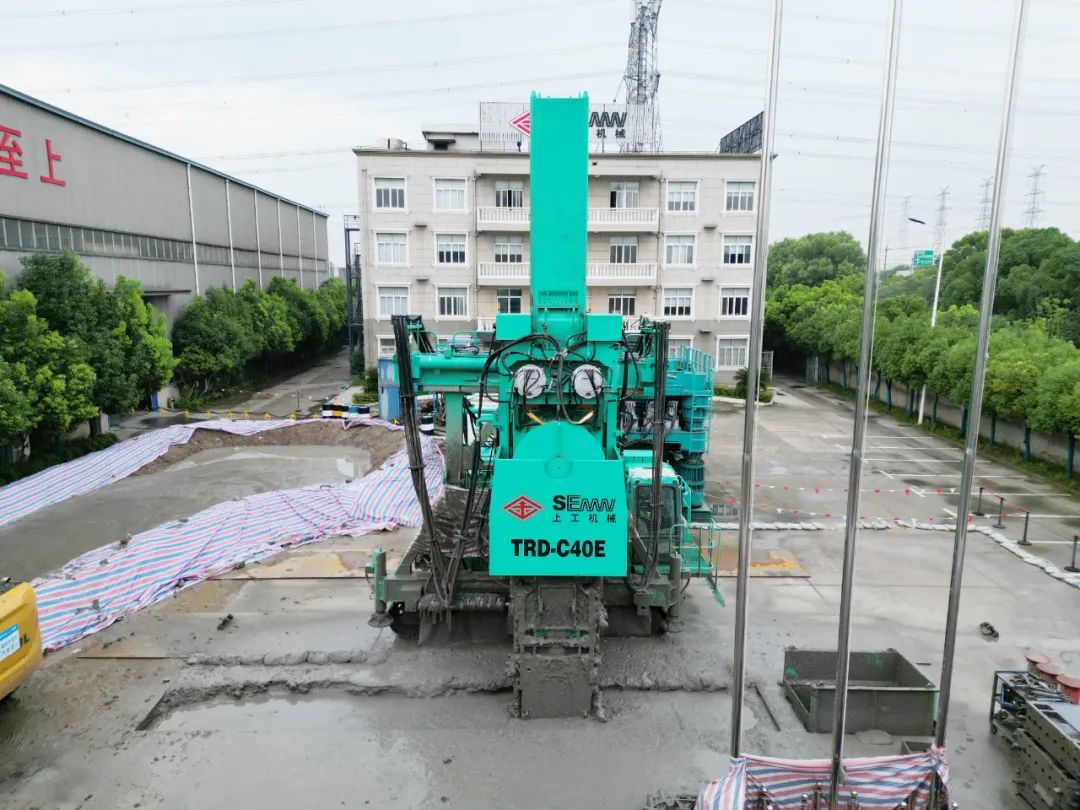

Successfully completed the 800-meter-thick and 50-meter-deep test section of the wall!?
From technological leadership to innovative breakthroughs,?
From focusing on products to providing overall construction solutions,?
SEMW keeps abreast of the market and bravely stands at the forefront.
Precise positioning, extreme improvement. The TRD-C40E construction machine?has a dual power system, a pure electric main power system and an electro-hydraulic auxiliary system (pure electric drive, higher efficiency, energy saving and environmental protection), which can adjust the motor speed and motor torque to meet different geological requirements. The maximum construction depth of the equipment is 50m, the width of the wall is 550-900mm, and the net construction height is 6.8m-10m. It is equipped with a newly designed pure electric drive crawler chassis, which has stronger mobility, lower construction height and higher construction efficiency. .
Whether it is performance, safety, humanization, new technology application, or industrial aesthetics, SEMW TRD-C40E is in the leading position in the industry. With the market demand for water-stop curtain continuous wall construction increasing year by year, TRD construction machine and equipment construction The construction method has been widely used in water conservancy project construction, foundation pit maintenance, subway stations, sealing and partitioning of pollution sources, revetment and other purposes. Combining with domestic geological conditions and operating conditions, TRD construction method machines are subdivided in terms of construction depth capabilities The optimization and upgrading are perfect enough, and SEMW once again leads the iterative innovation, once again embodies the independent innovation capability breakthrough and industry leader status of TRD construction machine products!
The successful roll-out of TRD-C40E?has once again expanded and subdivided the TRD construction machine product series, once again verified SEMW's ultimate pursuit of a series of products, increased its determination to explore the excellence in the application field of TRD construction machine industry, and let all users see SEMW The firm belief in continuously providing users with an overall solution for underground foundation construction that is more in line with their own conditions.
It has always been at the forefront, but has never been complacent. SEMW independently developed the first 61m construction capacity TRD-60D construction machine equipment in China in 2012. In 2017, it launched the low-noise all-electric power TRD-60E construction machine; In 2018, the TRD-80E type construction machine was successfully launched, creating the world's deepest TRD construction record; in 2019, the TRD-70D/E type, which meets the needs of large depth and complex formation construction, was launched, forming three major product series of TRD-60/70/80 ; In 2022, the product series will be further expanded, and the TRD-C50 construction machine will be launched, and then the TRD-C40E will be launched this time. The "value competitiveness" of Shanggong Machinery's subdivided products has been fully reflected, and the leading position of TRD in the industry has been consolidated again.
Advantages of TRD-C40E construction machine:?
1. Low headroom all-electric drive?

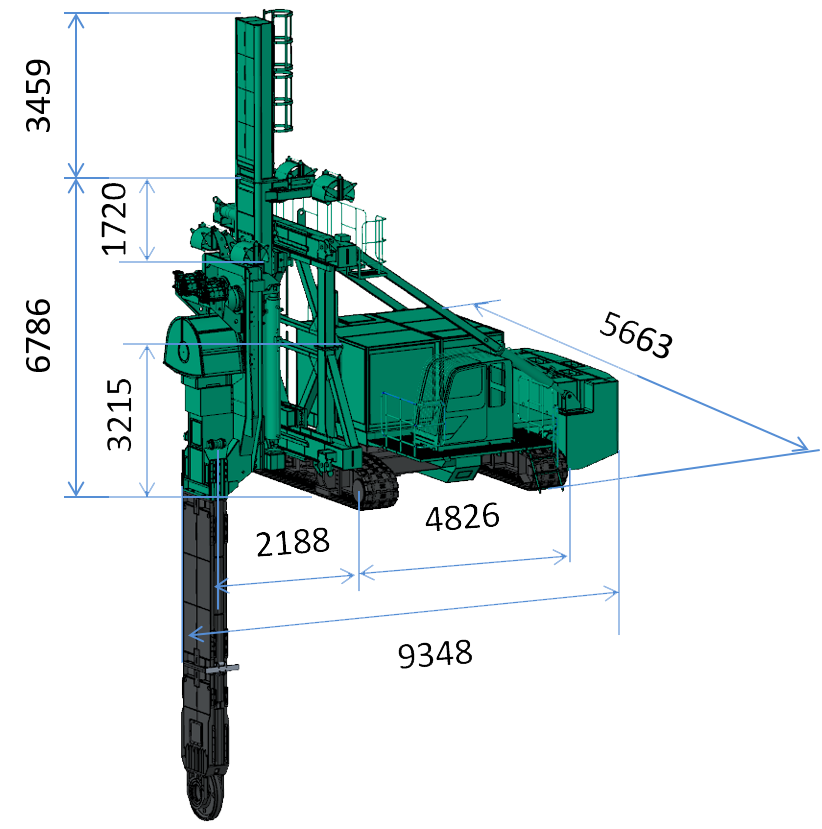

The net construction height is 10m, the minimum height is 6.8m, the width is 5.7m, and the length is 9.5m. The construction area is small; all-electric drive, energy saving and environmental protection, low noise; the maximum construction depth is 50m, and the width of the wall is 550-900mm.
2. Dual power system?
Pure electric active power system: motor speed and motor torque can be adjusted to meet different geological requirements; combined with electro-hydraulic auxiliary system to ensure construction flexibility and quality controllability, improve cutting efficiency and reduce energy consumption.?
3. Intelligent control?
Set different construction parameters according to different strata, improve construction efficiency and improve equipment reliability; monitor equipment status and working status in real time through remote monitoring and camera monitoring; have short-distance remote control operation equipment function.?
4. Tracked integrated equipment?
The transfer is convenient, the transportation and disassembly are simplified, the overall transportation does not exceed 35t, the length, width and height are not restricted, the transportation width is 3.36m, and the transportation height is 3.215m.
5. Easy maintenance?
The platform space layout is reasonable, and maintenance space and maintenance channels are reserved.
6. High construction efficiency
The construction efficiency is higher than that of the SMW construction method, and the construction efficiency at a depth of 40m is close to or exceeds that of TRD-C50 and the same model products in the market.
7. High ability to resist risks?
The strength of the lifting structure is optimized, and the lifting force reaches 90T*2. It is equipped with outrigger cylinders to meet the risks of buried drilling at standard depths.
8. New cab design?
The excavator cab is adopted, with beautiful appearance and reasonable layout; adjustable seats and air-conditioning system make the construction environment more comfortable; the combination of multiple display screens monitors the construction status in real time.
Technical parameters of TRD-C50 construction machine:
| Item? | Indicator | Unit | ||
| TRD-C40E | ||||
| Machine parameters? | Machine weight | 105（154） | t | |
| Machine size | 9.6*7.3*10.3 | m | ||
| (length*width*height) | ||||
| Active power parameters? | Active power | 120*2+90 | kw | |
| Hydraulic system | 28 | MPa | ||
| preset pressure | ||||
| Cutting data | Maximum depth of cut | 40 | m | |
| Wall thickness | 550~900 | mm | ||
| Wall forming speed | ≥12 | m/d | ||
| Cutting force | 340 | kN | ||
| Cutting speed | 70 | m/min | ||
| Traversing cylinder stroke | 1120 | mm | ||
| Traversing thrust | 40*2 | t | ||
| Lift cylinder stroke | 5000 | mm | ||
| Lift/Downforce | 90*2/（48*2） | t | ||
| Bracing cylinder stroke | 1000 | ° | ||
| Column left and right | ±3 | ° | ||
| slope | ||||
| Front and rear of mast | ±5 | km/h | ||
| slope | ||||
| Chassis parameters? | Traveling speed | 0.35/0.6 | mm | |
| Track shoe width | 800 | mm | ||
| Maximum track | 4026（4826） | mm | ||
| Center distance | ||||
| Transport track | 2480（3360） | mm | ||
| Center distance | ||||
| Wheelbase | 4828 | mm | ||
| Tension distance | 120 | mm | ||
Solving user needs and providing overall construction solutions are SEMW's consistent pursuit of philosophy. Over the years, SEMW has continued to adhere to "high quality", constantly guaranteeing user value and improving user benefits. The TRD-C40E construction machine achieves continuation and improvement on the basis of expanding the product series, creating a new journey of "high-quality" development of the domestic TRD construction machine industry. But this is just the beginning!
Post time: Jul-07-2023
