中文JB170 Hydraulic Walking Piling Rig
Product Features
HYDRAULIC WALKING PILING RIG
1. MORE EFFECTIVE, STABLE AND DURABLE
The leader, main platform and walking gear are designed for heavy-duty pile driving,?to ensure more stable and effective work.
Weight carrier of bigger load bearing.
2. EASY FOR ASSEMBLY AND TRANSPORATION
Modular structure design, easy for assembly and disassembly.
Out triggers of the platform with the rotary pin structure, is driven by cylinder, which?saves trouble of disassembly. Can be disassembled and transported by parts, easy for?transportation.
3. ADVANCED ELECTRO-HYDRAULIC CONTROL SYSTEM AND TECHNOLOGY
Both main drum and auxiliary drum are under electro-hydraulic proportional control,?available for variable speed control and lock any speed.
Main pump, control valve, pressure gauge, drums are all using domestic and foreign?well-known brands.
4. PRACTICAL AND RELIABLE OPERATION MONITORING SYSTEM
Standard leader with goniometer and inductive load angle monitor (optional) provide instant information about batter piling and pulling force, set alarm while in danger. The previous functions can be achieved while the piling rig working with ZLD series agitating auger and sensors (optional).
Deep mixing pile monitor (optional) provides data of pile depth, piling speed, the amount of slurry, and output of the information.
5. COMFORTABLE OPERATION CAB FOR EASY CONTROL
Well insulated operator’s room with five wind shields assures bright, quiet environment with minimum fatigue.
Hydraulic actuated winch control levers allow well performance and easy control.
Space for drill control box, inductive load angle monitor (optional), deep mixing monitor (optional) is reserved in the operator’s room, make the single-driver control easy and reliable.
TECHNICAL PERFORMANCE CHARACTERISTICS OF JB170
1. JB170 leader can be extended up to 53m, with the ultra-deep ZLD three-shaft?Agitating Auger, the maximum construction depth can reach 46m, together with?ZLD five-shaft agitating auger, it can drill holes of depth up to 30m.
2. JB170 contains 8 lifting cylinders, increase site adaptability.
3. Unique positioning structure design guarantees a self-erect without help of?service crane. JB170 can make 53m height.
4. JB170 hydraulic oil tank enclose with good appearance and prevent excessive?shine, Protect oil tank and filter at construction site.
5. Leader’s inclination angle lift up to 70°, JB170 will set alarm by built-in alarm?device (optional), to prevent it excessive tilt.
6. Removable operator’s room, easy for load and transport, ensure effective work.
Product Model: JB170
Specifications
| Item | JB170 HydraulicWalking Piling Rig | JB170A HydraulicWalking Piling Rig | |
| Total length of leader (m) | 23～53 | ||
| Diameter of leader (mm) | ?1120 | ||
| Center distance between leader and mounted equipment (mm) | 600×?101.6 | 1000×?101.6 | |
| Leader inclination angle (left to right) (°) | ±1.5 | ||
| Backstay stroke (mm) | 2800 | ||
| Leader trimming cylinder stroke (mm) | 400 | ||
| Max. auger model | ZLD330/85-5-M3-S | ||
| Max. diesel hammer model | D160 | ||
| Max. leader length (m) | 53 | ||
| Max. pulling force (with Max. leader) (KN) | 743 | ||
| Hydraulic winch (for mounting auger, diesel hammer) | Pulling force of single rope (KN) | 120max | |
| Winding and rewinding peed (m/min) | 0～21 | ||
| Rope diameter (mm) | ?22 | ||
| Drum capacity (m) | 750 | ||
| Hydraulic winch (for uplift, drilling pipe, pile) | Pulling force of single rope (KN) | 110max | |
| Winding and rewinding peed (m/min) | 0～18 | ||
| Rope diameter (mm) | ?22 | ||
| Drum capacity (m) | 300 | ||
| Swing angle (°) | ±10 | ±8 | |
| Transverse travel | Travel speed (m/min) | ≤4.5 | |
| Travel step (mm) | 3100 | ||
| Vertical travel | Travel speed (m/min) | ≤ 2.7 | |
| Travel step (mm) | 800 | ||
| Uplift of the track | Speed (m/min) | ≤ 0.55 | |
| Height (mm) | 450 | ||
| Distance between tracks | Working (mm) | 9100 | |
| Travelling (mm) | 4700 | ||
| Distance between pulleys in track | Working (mm) | 5600 | |
| Travelling (mm) | 4700 | ||
| Transverse-moving track | Length (mm) | 10130 | |
| Width (mm) | 1400/1200 | ||
| Vertical-moving track | Length (mm) | 6900 | |
| Width (mm) | 1700 | ||
| Connection between outrigger beam and platform | Pin rotary, cylinder expanding | ||
| Average ground pressure (MPA) | ≤0.1 | ||
| Motor power (kw) | 45 | ||
| Hydraulic crowded system (MPA) | 25/20 | ||
| Hydraulic crowded system operation | Manual & electric control | ||
| Total weight of piling rig (T) | ≈175 | ≈180 | |
Note: Specifications are subjected to change without prior notice.
Application

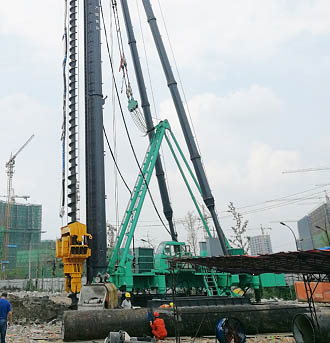

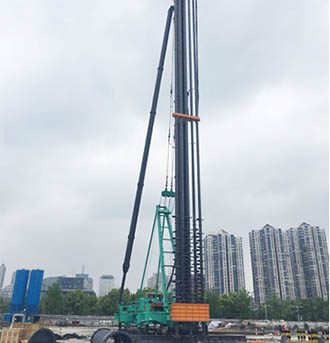

HANGZHOU PROJECT Product: Long Auger&JB170

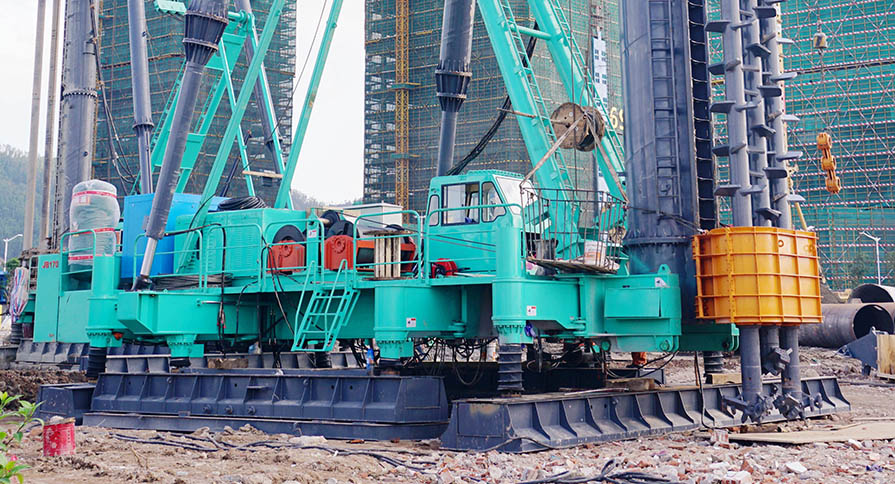

SHANGHAI PROJECT Product: ZLD330&JB170
